Distribution Manifolds - 4 Branches

Distribution Manifolds with operating valve 35 inter-axis









WD3909

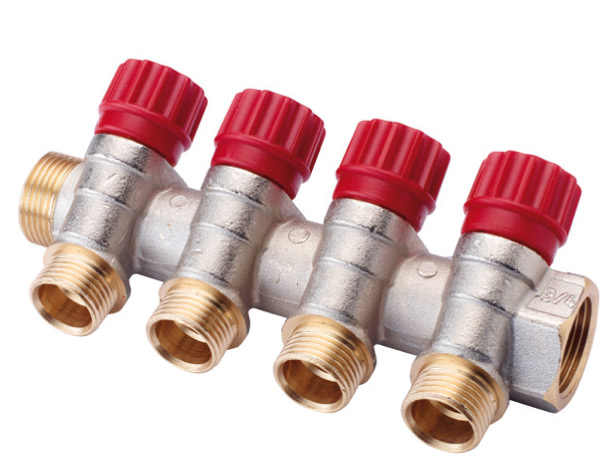

Distribution manifold with multiple connection, 2-3-4 branches with operating valve, on request with M or F ISO 228 F sockets, 35 mm inter-axis, forged CW617N brass, 3/4”-1” MF ISO 228 connection, nickel-plated or sandblasted brass finish, operating hand grips availablein other colours.

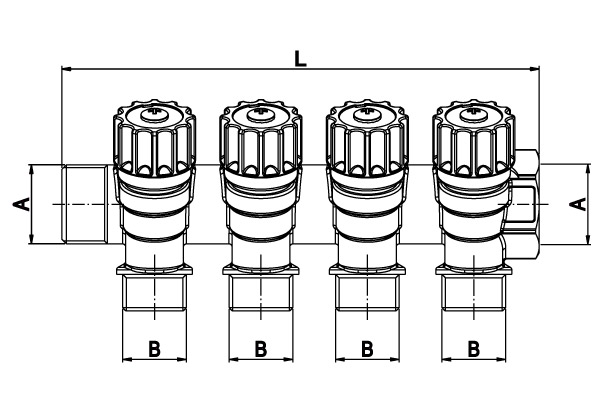

COD. A B L H P CH
WD 3909 G 3/4” MF G 1/2” M  Ø INT. 16 157 69,5 56 32
WD 3909/SP G 3/4” MF G 1/2” M SEDE PIANA 157 69,5 56 32
WD 3954 G 3/4” MF 24X19 M 157 70 56 32
WD 3984 G 1” MF G 1/2” M  Ø INT. 16 157 77,5 61,5 38
WD 3984/SP G 1” MF G 1/2” M SEDE PIANA 157 77,5 61,5 38
WD 3974 G 1” MF 24X19 M 157 78 61,5 38
